Command Line Options

The following sections explain the different options available when running EMRALD through the command prompt. Options can be manually specified in the command line or input via a .json file.

Option Flags

Flag	Description
-h	Opens the "Help" menu
-n	Specifies the number of runs
-i	Specifies the input model file path
-r	Specifies the basic/text results output file path
-o	Specifies the JSON path-results output file path
-t	Specifies the maximum time for each run
-e	Runs the simulation
-threads	Specifies the number of threads to use for parallel execution
-m	Specifies the parameters to monitor. Use brackets for multiple variables. Example: -m [x y z]
-s	Specifies the initial random number seed
-d	Specifies the debug level, either "basic" or "detailed", and an optional range Example: -d basic [10 20]
-rIntrv	Specifies how often to save the path results, every X number of runs. No value or <1 will result in saving only after all runs are complete.
-mergeResults	Merges two or more JSON path result files into a single file and estimates the 5th and 95th percentiles. The last path is the destination; all preceding paths are sources. Example (2 sources): -mergeResults c:/temp/Batch1.json c:/temp/Batch2.json c:/temp/Combined.json Example (3 sources): -mergeResults c:/temp/Batch1.json c:/temp/Batch2.json c:/temp/Batch3.json c:/temp/Combined.json
-console, -showConsole	Allocates a console window for stdout output when running a Release build of EMRALD_Sim.exe. Debug builds show a console automatically only when launched without arguments. Aliases: -console, -showConsole.
-json-help	Prints the JSON options file syntax to the console (CommandLineCP only).

To run a coupled external simulation (XMPP or WebSocket), configure the connection in the couplingInfo section of the Options JSON file rather than passing it on the command line.

Options JSON File

Alternatively, the user may create a dedicated .json file to specify options. This allows the user to prefill and run the simulation with only two arguments in the command line.

> [path/to/EMRALD_Sim.exe] [path/to/options/file]

Fields

Field	Type	Description
opsVer	number	Version of the options file format (current: 1.02).
runct	integer	Total number of runs.
inpfile	string	Path to the input model file.
resout	string	Path to the basic/text results output file.
jsonRes	string	Path to the JSON path-results output file.
variables	string[]	Variable names to record in the results.
initVars	object[]	Variables to (re)initialize on each run. Each item is { "varName": "<name>", "value": "<string value>" }. For variables flagged "reset on every run", this value is applied every run; otherwise behavior matches a single initial assignment.
runtime	string	Maximum simulation time in Days.HH:MM:SS format (e.g. 365.00:00:00).
seed	integer	Initial random number seed.
debug	string	Debug level: "basic", "detailed", or "off".
debugStartIdx	integer|null	Run index to start debug logging at. null means from the first run.
debugEndIdx	integer|null	Run index to stop debug logging at. null means through the last run.
pathResultsInterval	integer	How often (in runs) to write the path results file. Use -1 to write only at the end.
threads	integer|null	Number of threads to use for parallel execution. null (default) disables threading. Any value (even 1) uses per-thread temp folders so multiple instances can share the same model.
clearThreadTemps	boolean	If true (default when omitted), per-thread temp files are deleted after a multi-threaded run completes.
couplingInfo	object	External coupling configuration. Omit if no coupling is needed. See below.

couplingInfo sub-object

Field	Type	Description
couplingType	string	"XMPP" or "WebSocket".
couplingPassword	string	XMPP only. Password for the XMPP connection. Not used for WebSocket.
user	string	XMPP only. User name for the XMPP connection. Not used for WebSocket.
couplingURL	string|null	URL to connect to for WebSocket (required). May be null for XMPP.
timeout	integer	Connection timeout in seconds.
logCouplingMsgs	boolean	Log coupling messages to the console (debug builds only). Set false to suppress during testing.

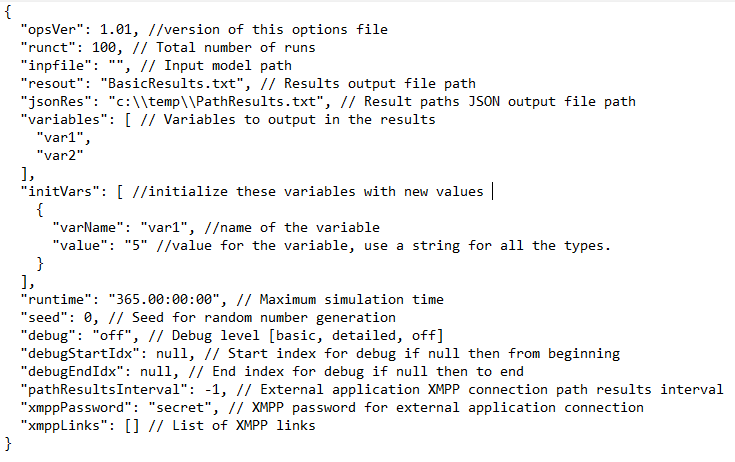

Example

{
  "opsVer": 1.02,
  "runct": 100,
  "inpfile": "c:/models/MyModel.json",
  "resout": "BasicResults.txt",
  "jsonRes": "c:/temp/PathResults.json",
  "variables": [ "var1", "var2" ],
  "initVars": [
    { "varName": "var1", "value": "5" }
  ],
  "runtime": "365.00:00:00",
  "seed": 0,
  "debug": "off",
  "debugStartIdx": null,
  "debugEndIdx": null,
  "pathResultsInterval": 1000,
  "threads": 4,
  "clearThreadTemps": false,
  "couplingInfo": {
    "couplingType": "WebSocket",
    "couplingPassword": "secret",
    "user": "user",
    "couplingURL": "ws://localhost:8080/emrald",
    "timeout": 30,
    "logCouplingMsgs": true
  }
}
